SemiAnalysis explains L11 diags for server rack readiness

By PulseAugur Editorial · [5 sources] · 2026-05-31 20:05

SemiAnalysis is explaining the meaning of "L11 diags" in the context of server manufacturing and deployment. L11 signifies that a single rack or scale-up domain is operational, passing diagnostics that test everything from software configuration to hardware burn-in. This stage is a step towards a fully functional cluster, which is designated as L12. AI

IMPACT Clarifies a technical term used in the deployment of AI infrastructure, helping operators understand readiness stages.

RANK_REASON This cluster explains a technical term related to server manufacturing and deployment stages, rather than announcing a new product or significant industry event.

Read on X — SemiAnalysis →

infra

AI-generated summary · Google Gemini · from 5 sources. How we write summaries →

SemiAnalysis explains L11 diags for server rack readiness

COVERAGE [5]

X — SemiAnalysis TIER_1 English(EN) · SemiAnalysis_ · 2026-05-31 20:05

Notably, passing L11 diags means that this rack is up and running, including the IMEX channels on the NVL72 scale-up domain within the rack! Not a full cluster,

Notably, passing L11 diags means that this rack is up and running, including the IMEX channels on the NVL72 scale-up domain within the rack! Not a full cluster, since there is no scale-out networking setup yet, but still quite the flex from Mr. Dell, CoreWeave, and NVIDIA 💪 https…
X — SemiAnalysis TIER_1 English(EN) · SemiAnalysis_ · 2026-05-31 20:05

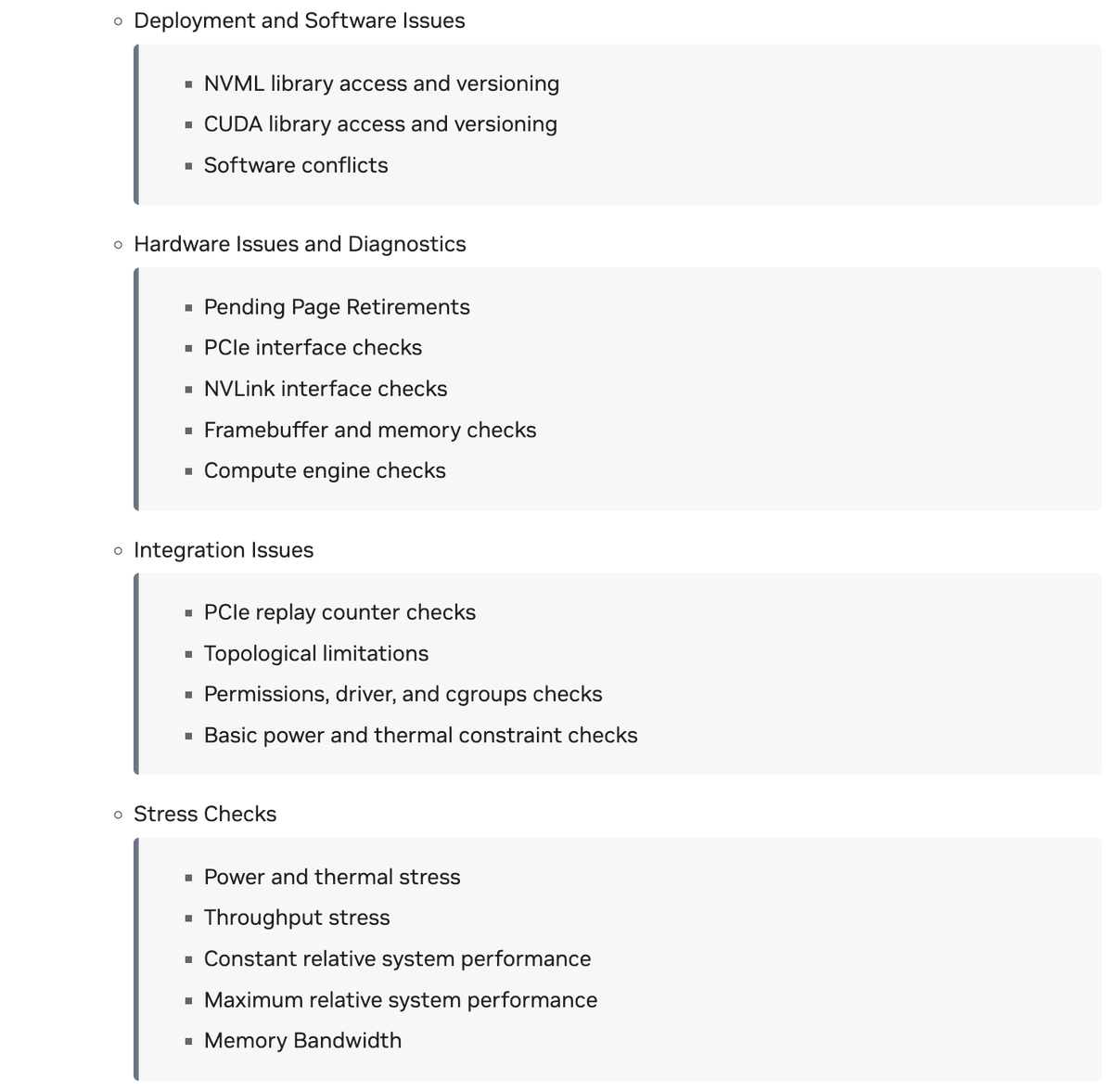

Diags means "diagnostics". It's a set of scripts that check everything is working, from the OS software configuration to the hardware burn in / stress tests. NV

Diags means "diagnostics". It's a set of scripts that check everything is working, from the OS software configuration to the hardware burn in / stress tests. NVIDIA generally uses a tool called dcgm for this, which can be run on a single node or multinode. In this case CoreWeave …
X — SemiAnalysis TIER_1 English(EN) · SemiAnalysis_ · 2026-05-31 20:05

At L10 your Firmware/BIOS and OS works on a single server, at L11 a single rack or scale-up domain works, and then at L12 your whole cluster works. (3/5) https:

At L10 your Firmware/BIOS and OS works on a single server, at L11 a single rack or scale-up domain works, and then at L12 your whole cluster works. (3/5) https://t.co/d6HV519eLZ
X — SemiAnalysis TIER_1 English(EN) · SemiAnalysis_ · 2026-05-31 20:05

L11 means "Level 11". Its a definition out of 12 that server OEMs and ODMs use to describe what stage of the manufacturing process they are performing. Not ever

L11 means "Level 11". Its a definition out of 12 that server OEMs and ODMs use to describe what stage of the manufacturing process they are performing. Not every level is standard across the industry, but generally when you get to L6 you have a server chassis with a motherboard h…
X — SemiAnalysis TIER_1 English(EN) · SemiAnalysis_ · 2026-05-31 20:05

Ever wonder what L11 diags means? Let's break it into two components: L11 and diags. (1/5)

Ever wonder what L11 diags means? Let's break it into two components: L11 and diags. (1/5)

COVERAGE [5]

Notably, passing L11 diags means that this rack is up and running, including the IMEX channels on the NVL72 scale-up domain within the rack! Not a full cluster,

Diags means "diagnostics". It's a set of scripts that check everything is working, from the OS software configuration to the hardware burn in / stress tests. NV

At L10 your Firmware/BIOS and OS works on a single server, at L11 a single rack or scale-up domain works, and then at L12 your whole cluster works. (3/5) https:

L11 means "Level 11". Its a definition out of 12 that server OEMs and ODMs use to describe what stage of the manufacturing process they are performing. Not ever

Ever wonder what L11 diags means? Let's break it into two components: L11 and diags. (1/5)
